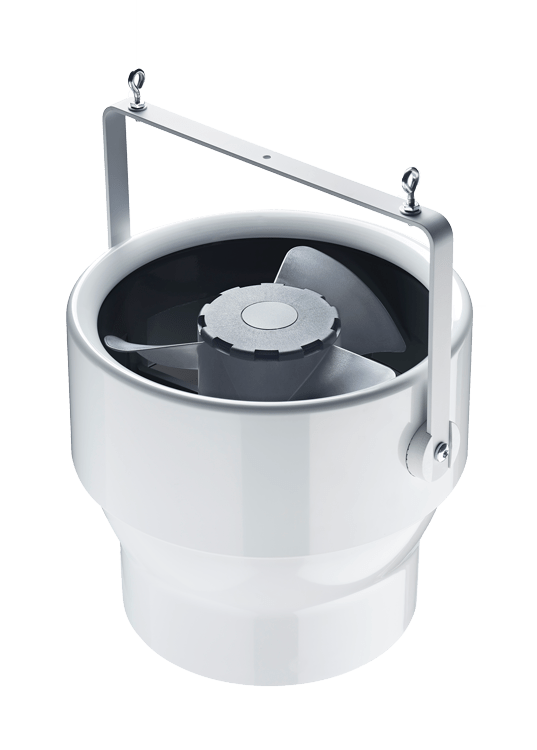

Pearl Series

Good things come in small packages. That idea sparked the development of the Pearl, our smallest form factor destratification fan to date.

Increase comfort

Reduce energy cost

Simple and easy installation
airius fans RS184_pearl2

THE AIRIUS PEARL FANS CAN HELP TO:

Increase Comfort

Gentle Air Mixing for Comfort

REDUCE ENERGY COSTS

Mitigate stratification to save on energy costs.

FIT TIGHT SPACES

Compact design fits where other fans will not.

Increase comfort in

Extend the life of your HVAC equipment, and reduce your carbon footprint.

Features & Options

airius fans RS184_pearl series

Quick and easy installation

Complete with a 6-foot cord and plug for 120V fans, installing a Pearl Series fan is quick and easy. Mount an electrical j-box/receptacle near the intended fan location and use one of the recommended mounting methods to hang the fan from the supplied eyebolts. Additional low voltage wiring may need to be installed for control of an EC motor or eliminated with a wireless control option.
airius fans air pear basic motors

Basic AC motors and controls

Our basic AC motors are a great option to keep things simple. Controls for these types of motors are installed in-line with the power circuit feeding the fans. Several control types are available, from simple wall mounted controls to our Smart TRIAC that can adjust speed using: dip switches for fixed speed, 2-20mA current, 0-10VDC, or high and low temperature sensors that adjust fan speed based on the temperature difference. Please see the following information sheets for specific details.
airius fans air pear premium motors and controls

Premium EC motors and controls

Our premium EC motors, made by ebm-papst®, are a great option for maximum efficiency and controllability. EC fans maintain higher efficiency across the entire speed range when compared to traditional AC motors. Controllability of EC fans can be through a direct 0-10VDC wired connection, using our Pearlink Wi-Fi based app, or integrated into an existing automation system over BACnet/IP.

Intake Grille

We recommend the grille option for fans that are mounted within reach of an occupant. If mounted out of reach, we suggest leaving the intake open to maximize airflow and to keep the noise level low.
Off white (Cool gray 2C) Gray (gray 432 C) Black

Colors

Pearl Series fans are available in three standard colors: Off white (Cool gray 2C), gray (gray 432C) or black. Custom colors will be considered for large bulk purchases. Contact Airius for further details. If you need small quantities of fans with custom colors, look at our Designer Series fans.

Technical Documents

Basic Motors & Control

Pearl Airius TRIAC Smart Auto Speed Control TRIAC, 120V, 1.5 Amps Speed Control TRIAC, 120V, 15 Amps Speed Control TRIAC, 230V, 8 Amps Speed Control TRIAC, 277V, 5 Amps

Premium Motors & Control

Pearl EC POT

Installation & Warranty

Pearl IOM

BIM & Guide Specifications

Pearl BIM Pearl EC BIM

Case Studies

Cigars International

Airius teamed up with HT LYONS to provide Cigars International’s Hamburg facility an evenly dispersed humidification answer.

Flat Broke Shooters

Flat Broke Shooters, a premier indoor shooting range in southern Maryland, recently finished a 3500 square foot retail space with 20 foot tall ceilings. Originally, they planned on using two HVLS fans to push the warm air down and help with the utility bills, however, their electrician had shown them the Air Pear smoke visualization video which piqued their interest.

Sanitas Brewing

With a lot of glass to light up the space and garage doors that open so beer drinkers can enjoy Colorado’s sunny weather, Sanitas Brewing Company’s taproom is the perfect spot to enjoy an innovative microbrew.

WARRANTY AND REFURBISHMENT

Full warranty details can be found under the technical downloads section.

3 Year Warranty

All Parts and Components

Money-Back Guarantee

Up to 30 Days.

Refurbishment Program

Motor Replacement program after warranty ends.

Which fan and how many?
